BEAM - command description
draw beam
keycommandline entry:   BEAM
menu:   APLUS > STRUCTURE > BEAM

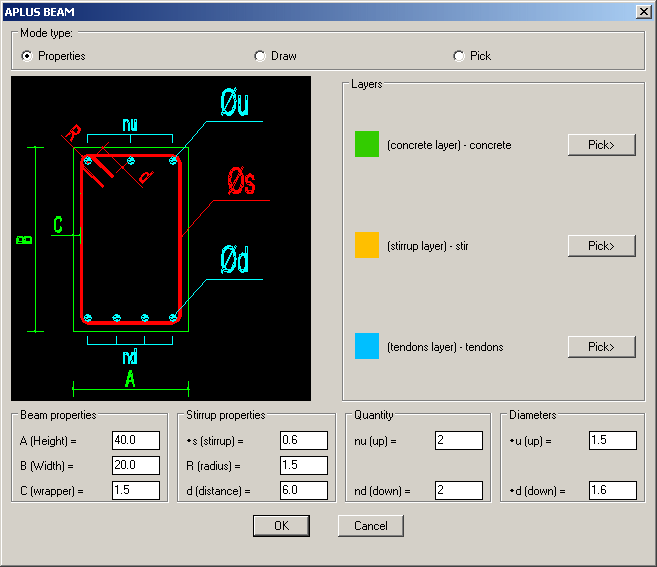

This commands allows you to quickly draw beams. You may set following parameters in a panel (picture bellow):
1. Drawing mode (set all properties in panel / draw beam dimensions / pick dimensions)
2. Beam properties
3. Stirrup properties
4. Quantity of bars
5. Bar diameters
6. Layers
